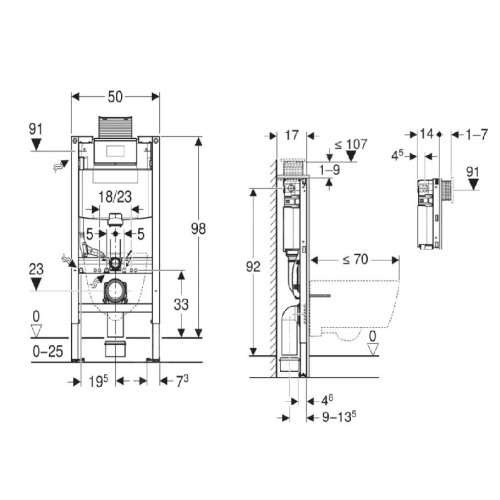

Duofix mounting element for wall-hung toilets with Omega 12 cm concealed cistern

Intended use

For metal and wooden stud walls

For Geberit Duofix system walls

For installation in partially high end walls

For floor thicknesses of 0-25 cm

For wall-hung toilets

Specifications

Statically self-supporting frame, powder-coated for corrosion protection

Frame for wall-hung toilets with connection dimensions according to EN 33 and a projection of up to 70 cm

Frame with 9 mm diameter holes for attachment to the wooden structure

Rotatable base plates, suitable for installation in UW 50 and UW 75 U-profiles

The base plates can be installed into the Geberit Duofix system rail without tools and without additional components

Galvanized supports, corrosion-protected, with anti-slip properties

Connection elbow for tool-free installation at various depths, adjustment range 45 mm

Geberit Omega 12 cm concealed cistern, with Condensation protection

For top or front operation, suitable for two flush volumes

With factory settings, an immediate additional flush is possible

Installation and service work on the cistern without tools

Side water inlet on the left or rear left

Rough installation cover for service hole with shortening option, protects against moisture and dirt

With pipe protection for the water supply line for the Geberit AquaClean shower toilet and for the connecting line

Mounting option for power connection and Power & Connect Box

Technical specifications

Flow pressure 10-1000 kPa

Max. water temperature 25 °C

Flush volume, factory setting: 6 / 3 l

Large flush volume - setting range: 4 / 4.5 / 6 / 7.5 l

Small flush volume - setting range: 2-4 l

Flow rate at 3 bar: 0.16 l/s

Minimum overpressure: 10 kPa

Calculated flow rate: 0.09 l/s

Scope of delivery

Water inlet R 1/2, Suitable for MeplaFix, with integrated angle valve and handwheel

Cover for rough installation for service opening

Toilet connection fitting, Ø 90 mm

Drainage bend for toilet, PE-HD, Ø 90 mm

Spout, PE-HD, Ø 90/110 mm

Mounting material

Does not include control button

Bulkhead mounting kit not included - must be ordered separately
