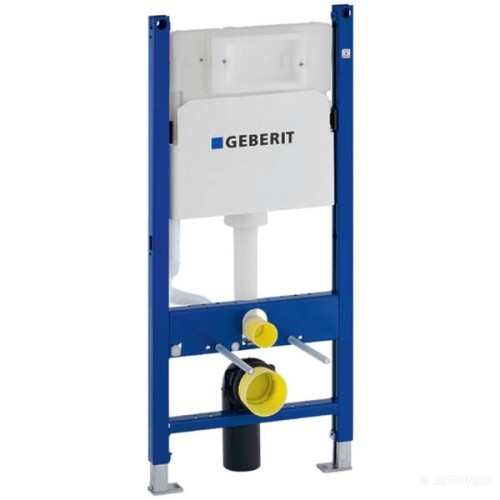

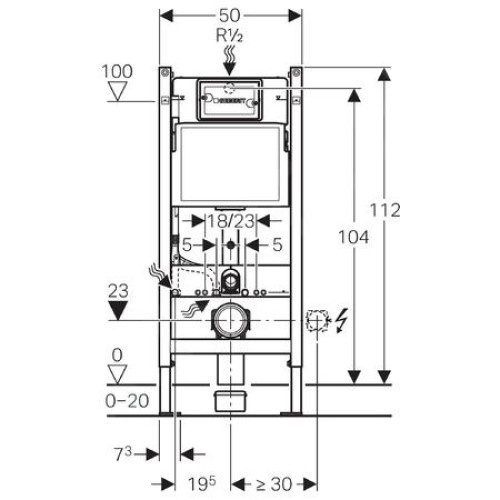

Duofix installation element for wall-hung toilets with Delta 12 cm concealed cistern

Intended use

For installation in partial or full-height pre-wall installations in front of solid walls or drywall walls

For the installation of wall-hung toilets with a mounting distance of 18 cm or 23 cm

For floor thicknesses of 0–20 cm

Front operation

For operation using the Geberit Delta actuator plate

For connecting Geberit AquaClean

Not suitable for encasing in concrete

Features

Geberit Delta 12 cm concealed cistern, front operation

Anti-fogging concealed cistern

Adjustable large flush volume

Pre-set small flush volume

Adjustable instant flush

Water connection at the rear/top center

Connection hose to the angle valve can be screwed on by hand

1 flush volume with the Geberit Delta 15 actuator plate

2 flush volume with the Geberit Delta 20 actuator plates

Powder-coated surface Frame, color Geberit Blue

Self-supporting element

Frame with 9 mm diameter openings for mounting in wooden structures

Galvanized supports, continuously adjustable from 0 to 20 cm

Plastic bracket, depth suitable for installation in UW50 profiles

Installation depth 12 cm

Technical information

Maximum water temperature: 25 °C

Flush volume - factory set: 6 and 3 l

Large flush volume - setting range: 4.5 / 6 / 7.5 l

Small flush volume: 3-4 l

Scope of delivery

2 M12 threaded rods for securing the ceramic appliance

Outlet valve for 2 flush volumes

Cover for rough installation of the service opening, Styrofoam foam

2 protective plugs

Angle valve R 1/2" with adapter ring

Pipe protection for the water supply line for Geberit AquaClean

Fastening the drain bend

WC connection set ø 90 mm

Waste bend For toilet, PE-HD, ø 90/90 mm

Transition, ø 90/110 mm

Mounting material

Not included: Actuator plate

Not included: Pre-wall installation kit

Pre-wall installation kit is not included - must be ordered separately
