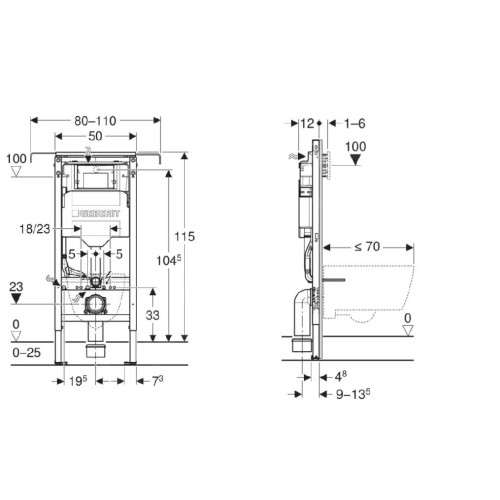

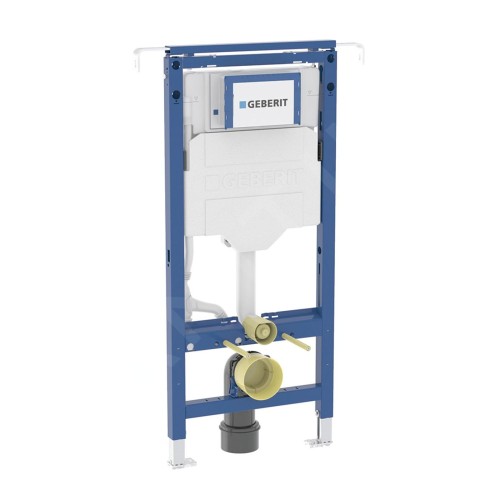

Duofix mounting element for Sigma 12 cm concealed cistern, for installation between side walls

Intended use

For metal and wooden stud walls

For installation in partially high or floor-to-ceiling partition walls

For installation in narrow spaces and niches

For floor thicknesses of 0-25 cm

For wall-hung toilets

Specifications

Statically self-supporting frame, powder-coated to protect against corrosion

Width-adjustable

Frame for wall-hung toilets with connection dimensions according to EN 33 and a projection of up to 70 cm

Alternative mounting position for wall anchors

Rotatable base plates, suitable for installation in UW 50 and UW 75 U-profiles

Galvanized supports, corrosion-protected, with anti-slip properties

Connection elbow for tool-free installation at various depths, adjustment range 45 mm

Geberit Sigma 12 cm concealed cistern, with condensation protection

For front-mounted operation, suitable for 1 flush, 2 flush volumes, and Start/Stop Flush

With factory settings, an immediate additional flush is possible.

Installation and service work on the cistern without tools.

Water inlet at the rear or top center.

Coarse installation cover for service hole with shortening option, protects against moisture and dirt.

With pipe protection for the water supply line for the Geberit AquaClean shower toilet and for the connection line.

Mounting option for power connection and Power & Connect Box.

Technical specifications

Flow pressure: 10-1000 kPa

Maximum water temperature: 25°C

Flush volume, factory setting: 6 and 3 l

Large flush volume, setting range: 4 / 4.5 / 6 / 7.5 l

Small flush volume, setting range: 3-4 l

Scope of delivery

Water inlet R 1/2", suitable for MasterFix and MeplaFix, with integrated angle valve and handwheel.

Coarse installation cover for service opening.

Connection set for toilet, Ø 90 mm

90° PE-HD elbow, Ø 90 mm

PE-HD grommet, Ø 90 / 110 mm

Fastening and protective material
