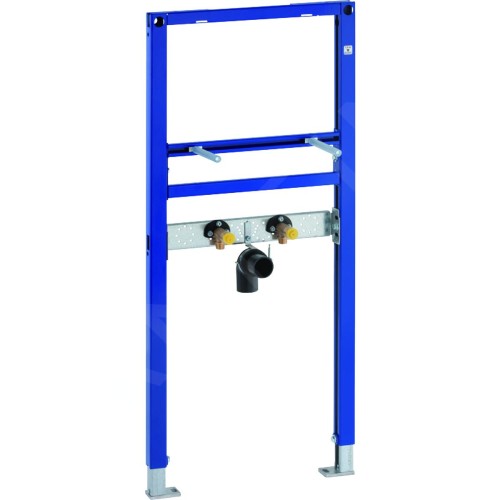

Duofix mounting element for washbasins, installation height 112 cm, floor-standing tap

Intended use

For wet and dry constructions

For installation in partially high or high installations in front of walls

For installation in floor-to-ceiling installation walls

For installation in partial or floor-to-ceiling Geberit Duofix system walls

For installing washbasins

For floor-standing taps

For floor thicknesses of 0-20 cm

Features

Self-supporting powder-coated frame

Frame with drilled holes Ø 9 mm for fastening in wooden structures

Galvanized supports

Adjustable supports 0-20 cm

Non-slip supports

Rotatable support plates

Support plate depth suitable for installation in UW 50 and UW 75 U profiles and in Geberit Duofix system profiles

Washbasin fastening spacing 5-38 cm

Connection elbow fastening height adjustable and sound-insulated

In the Height and depth adjustable crossbar for connecting the fittings

Scope of delivery

2 wall connections Rp 1/2" / R 1/2", suitable for MeplaFix

2 sound-insulating pads

2 sound-insulating sleeves

Connection elbow made of PE-HD, ø 50 mm

Seal ø 44 / 32 mm

2 threaded rods M10

Fastening material

Modular kit for pre-wall installation is not included - must be ordered separately
