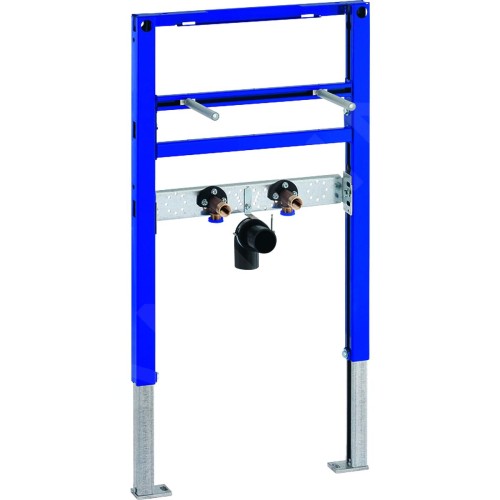

Duofix installation element for washbasins

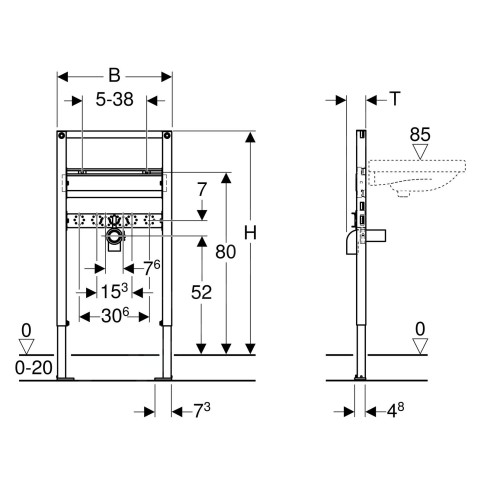

Installation height: 82–98 cm (H)

Dimensions: W = 50 cm, D = 7.5 cm

Intended use

For wet and dry constructions

For installation in partially high installations in front of walls. For installation in partially high Geberit Duofix system walls

For installing washbasins

For floor-standing faucets

For floor thicknesses of 0-20 cm

Features

Self-supporting powder-coated frame

Frame with drilled holes Ø 9 mm for fastening in wooden structures

Galvanized supports

Adjustable supports 0-20 cm

Non-slip supports

Rotatable support plates

Support plate depth suitable for installation in UW 50 and UW 75 U profiles and in Geberit Duofix system profiles

Washbasin fastening spacing 5-38 cm

Height-adjustable and sound-insulated connection elbow fastening

Height- and depth-adjustable cross member for connecting the faucets

Scope of delivery

2 wall connections Rp 1/2" / R 1/2", suitable for MeplaFix

2 sound-insulating pads

2 sound-insulating sleeves

Connection elbow made of PE-HD, ø 50 mm

Seal ø 44 / 32 mm

2 M10 threaded rods

Mounting hardware

Kit for front-wall installation is not included - must be ordered separately
