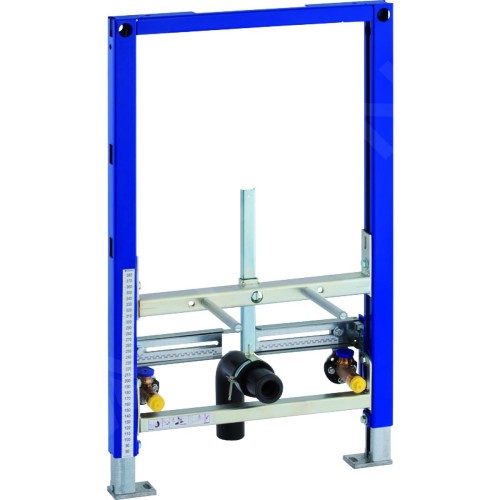

Duofix installation element for shower toilets, installation height 82 cm, universal

Intended use

For wet and dry constructions

For installation in partially high installations in front of walls

For installation in high Geberit Duofix system walls

For wall-mounted shower toilets with a pedestal tap

For floor thicknesses of 0-20 cm

Features

Self-supporting powder-coated frame

Frame with drilled holes Ø 9 mm for mounting in wooden structures

Galvanized supports

Adjustable supports 0-20 cm

Non-slip supports

Rotatable support plates

Support plate depth suitable for installation in UW 50 and UW 75 U profiles and Geberit Duofix system profiles

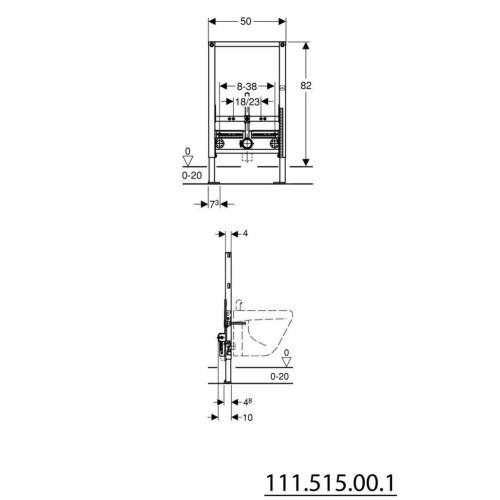

Spacing of the wall-mounted shower toilet attachments: 18 or 23 cm

Height-adjustable shower toilet attachment

Height-adjustable and sound-insulated connection bend attachment

Fastening of the fittings Adjustable in width and height

Protective plugs for a one-time pressure test with cold water up to max. 15 bar / 1500 kPa

Scope of delivery

2 wall connections Rp 1/2" / R 1/2", suitable for MeplaFix

2 sound-insulating pads

2 sound-insulating sleeves

Connection elbow made of PE-HD, ø 50 mm

Seal ø 44 / 32 mm

2 protective plugs

2 threaded rods M12

Fastening material

Modular kit for pre-wall installation is not included in delivery - must be ordered separately
