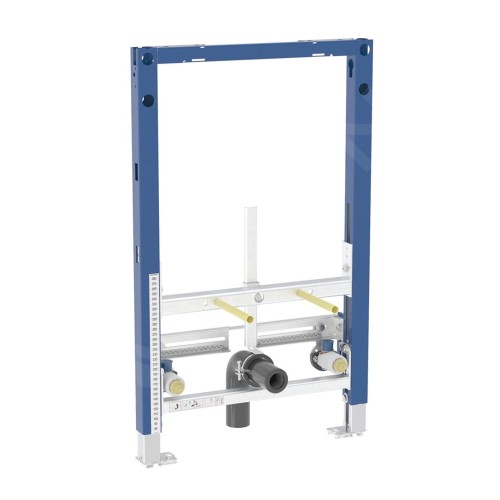

Duofix mounting element for bidet, installation height 82 cm, universal

Intended use

For drywall constructions

For installation in half-height partition walls

For installation in partially high Geberit Duofix system walls

For wall-mounted bidets with pedestal taps

For floor thicknesses of 0-25 cm

Specifications

Self-supporting powder-coated frame

Galvanized supports

Footrests with anti-slip finish

Rotatable footplates

Support plate depth suitable for installation in UW 50 and UW 75 U profiles and in Geberit Duofix system profiles

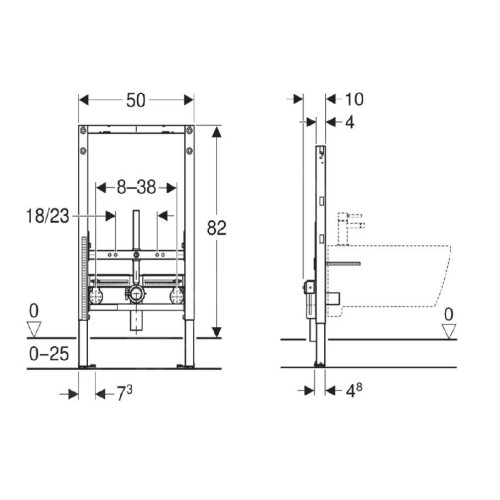

Wall-mounted bidet mounting distance 18 or 23 cm

Height-adjustable bidet mounting

Height-adjustable and sound-insulated connection elbow mounting

Adjustable width and height of fittings

Protective plug for one-time pressure testing with cold water up to max. 15 bar 1500 kPa

Scope of delivery

2 wall connections Rp 1/2" / R 1/2", suitable for MeplaFix

2 sound-insulating pads

2 sound-insulating sleeves

PE-HD connection elbow, Ø 50 mm

Seal Ø 44 / 32 mm

Fastening material

Wall mounting kit not included; must be ordered separately
