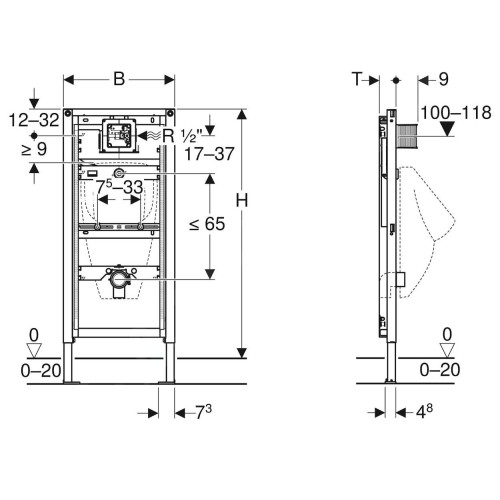

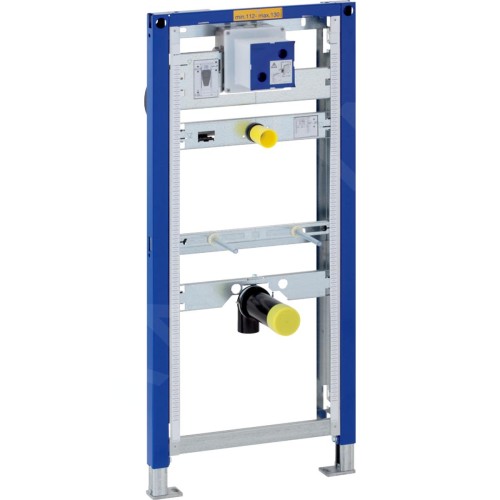

Geberit Duofix, installation element for urinals, 112–130 cm, universal

For wet and dry constructions

For installation in partially high or high installations in front of walls

For installation in floor-to-ceiling installation walls

For installation in partial or floor-to-ceiling Geberit Duofix system walls

For installation of urinals

For installation of the Geberit urinal flush (from production year 2009)

For floor thicknesses 0–20 cm

Features

Self-supporting powder-coated frame

Frame with drilled holes Ø9 mm for mounting in wooden structures

Galvanized supports, adjustable from 0–20 cm, with non-slip coating

Pivoting support plate, support plate depth suitable for installation in UW 50 and UW 75 U profiles and Geberit Duofix system profiles

Element height adjustable to the urinal, 112–130 cm cm

Universal flush-mounted box for operating the Geberit urinal flush function

Connection terminal for the power supply in the flush-mounted box

Water connection on the right side of the flush-mounted box

Water connection suitable for MeplaFix

Wall plate for tool-free installation

Pre-assembled shut-off valve with regulation

With built-in pipe protection for flushing the pipe

Cover for rough installation of the 10.5 x 10.5 cm service opening, which can be shortened without tools

Flexible flush hose

Guide for the flush hose to prevent standing water

Height-adjustable Ø32 mm supply line attachment

Height-adjustable and sound-insulated connection elbow attachment

M8 urinal attachment, adjustable in width and height

Crossbar with center mark, adjustable without tools

Additional urinal attachment available with accessories

Adjustable with accessories for urinals with flush head

Technical information

Flow pressure 100-800 kPa

Maximum water test pressure 1600 kPa

Maximum air/inert gas test pressure 300 kPa

Maximum water temperature 30 °C

Flow rate at a pressure of 1 bar without flow regulator: 0.3 l/s

Flow rate at a pressure of 1 bar with flow regulator: 0.24 l/s

Scope of delivery

Wall connection R 1/2"

Cover for rough installation with lid

Connecting pipe between the supply line (Ø32 mm) and the urinal, with a seal on the urinal

Protective plug

Connecting elbow made of PE-HD, Ø63 / 50 mm

Protective cover

Seal (Ø57 / 50 mm)

Odor trap for the urinal (Ø50 mm), with a seal on the urinal

2 M8 threaded rods

Fastening material

Example photo

The kit for pre-wall installation is not included in the scope of delivery - must be ordered separately
