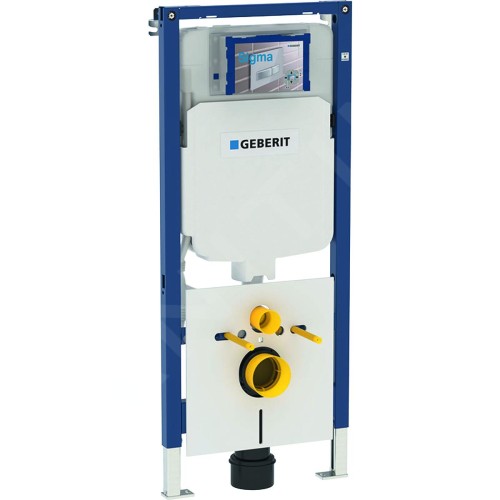

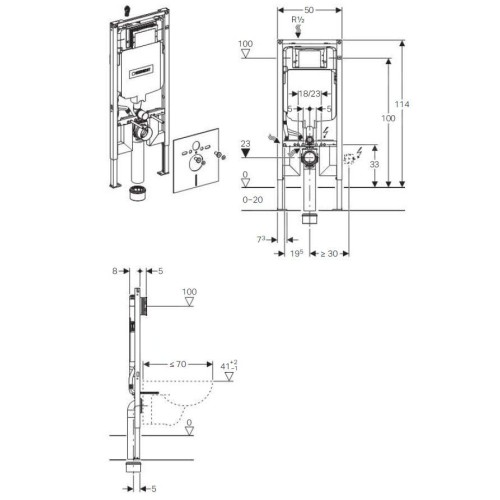

Duofix installation element for wall-mounted toilets, concealed - Sigma 8 cm cistern, installation height 114 cm

Intended use

For wall-mounted toilets with a flush height of up to 70 cm

For 1 flush, 2 flush volumes, or start/stop flush

For floor thicknesses of 0–20 cm

For installation in partially high Duofix system walls in front of solid walls or drywall

For installation in Duofix system walls across the entire room height

For installation in front of solid walls or drywall

For installation in partial or full-height pre-wall installations in front of solid walls or drywall

For installation in lightweight partition walls across the entire room height

Not suitable for encasing in concrete

Features

Type series 2016

The frame is suitable for ceramic toilets with a small contact surface (pressure-resistant wall tiles)

Drain bend for tool-free installation at various depths, adjustment range 45 mm

The connection bend can be mounted vertically at the front

Extended Connection elbow for floor connection

Soundproof drain elbow attachment

Concealed cistern with front operation, anti-fog insulation

Adjustable instant flush

Concealed cistern for tool-free installation and servicing

Water connection from above, offset to the left

The cover for rough installation protects the service opening from moisture and contamination

Cover for rough installation and the service opening with the option to shorten it, suitable for aligning the actuator plate

With pipe protection for the water supply line for Geberit AquaClean

Frame with 9 mm diameter openings for mounting in wooden structures

Self-supporting element

Frame with 4/4 cm C-profile

Powder-coated frame surface, Geberit Blue

Supports extendable by 5 cm

Support plates rotatable, for installation in UW50 and UW75 profiles

Technical information

Hydraulic pressure range 0.01-1.0 MPa

Maximum operating water temperature 25° C

Flush water volume - factory setting 6 and 3 l

Volume of the large flush volume: 4.5 / 6 / 7.5 l

Volume of the small flush volume: 3/4 l

Scope of delivery

Water connection R 1/2, suitable for MeplaFix, with integrated angle valve and manual control dial

Cover for rough installation of the service opening

2 anchoring elements

WC connection set, ø 90 mm

Connection elbow 90° made of PE-HD, ø 90 mm

Adapter, PE-HD, ø 90/110 mm

2 protective plugs

2 threaded rods M12

Sound insulation set

Fastening material

Modular kit for pre-wall installation is not included in delivery - must be ordered separately
