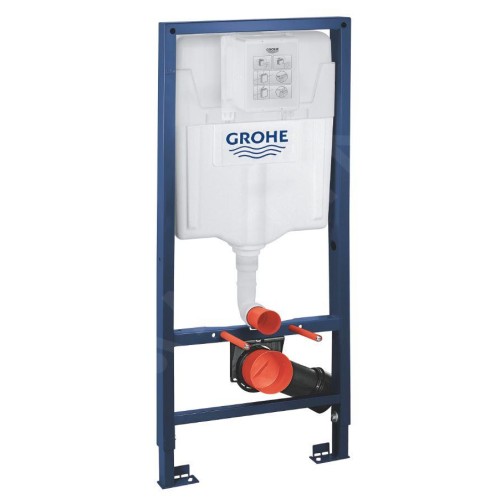

For front-wall or stud wall installation

Steel frame

Fully pre-assembled

With quick adjustment and height adjustment

Fastening material

TÜV-tested

2 WC retaining bolts

Ceramic fasteners

Toilets with a support surface < 205 mm require support set 38 779

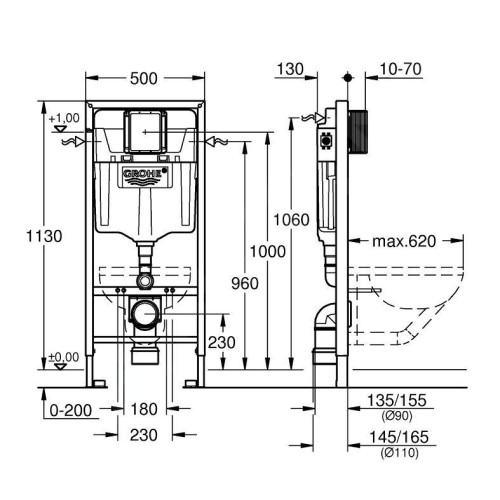

Screw spacing 180/230 mm

Drain bend Ø 90 mm

Depth-adjustable

Reducer Ø 90/110 mm

Inlet and outlet fittings

Cistus GD 2, 6-9 l with the following functions:

Factory setting 6 l and 3 l

Pneumatic drain valve with 3 functions: 2 flows or start & stop or non-interruptible

Water connection from the left/right or rear

Fittings group I

Condensation-proof

1/2" water connection with integrated angle valve and tool-free hose connection

Tool-free installation inspection shaft with Shell protection

Vertical and horizontal installation

Wall bracket 38 558 00M for front-wall installation must be ordered separately.

Inspection shaft 40 911 000 for small cover plates must be ordered separately.
