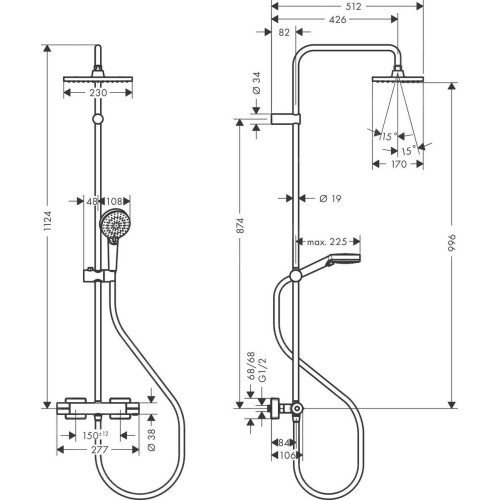

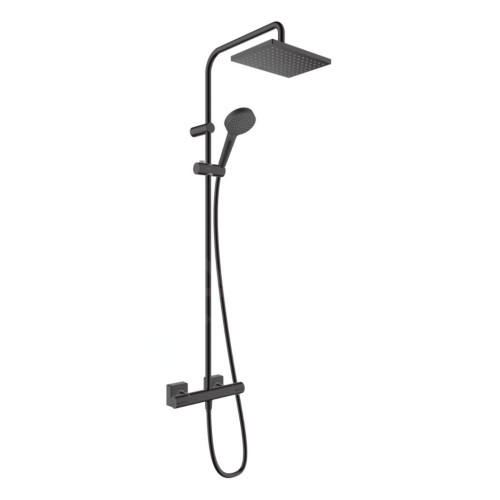

The Showerpipe 230 shower system for wall installation includes:

Overhead shower

Finish: Matte black

Shower disc material: Plastic

Shower head size: 230 x 170 mm

Spray type: Rain

EcoSmart, maximum flow rate at 3 bar: 8.7 l/min

With QuickClean technology, the shower section can be removed for cleaning

Mounting: Ceiling or wall

Connection thread G 1⁄2

Supply line dimensions: DN15

Shower arm length: 426 mm

Vario EcoSmart hand shower

Finish: Matte black

Shower head size: 100 mm

Spray type: Rain, IntenseRain

Spray modes can be adjusted using the shower head dial

With QuickClean technology and XXL Performance

Maximum flow rate at 0.3 MPa: 9.7 l/min

With water line inside

The impurity filter can be removed can be flushed

Supply line thread G 1⁄2

Supply line dimensions: DN15

Suitable for instantaneous water heaters

Vernis thermostat

Safety cut-off at 40°C

Adjustable temperature limit

Operated by turning the handle

Two appliances cannot be operated simultaneously

Mounting type: Wall-mounted

Supply line dimensions: DN15

Supply line thread G 1⁄2

Center distance 150 ± 12 mm

Crometta shower rail with Metaflex shower hose

Wall-mounted shower rail type: Brass tube, matte black

Shower rail diameter: 19 mm

Height-adjustable glider with locking button for sliding

Shower hose 160 mm
