Wall-mounted WC pre-wall element

Standard height

Installation in front of a solid wall, in plasterboard partitions, etc.

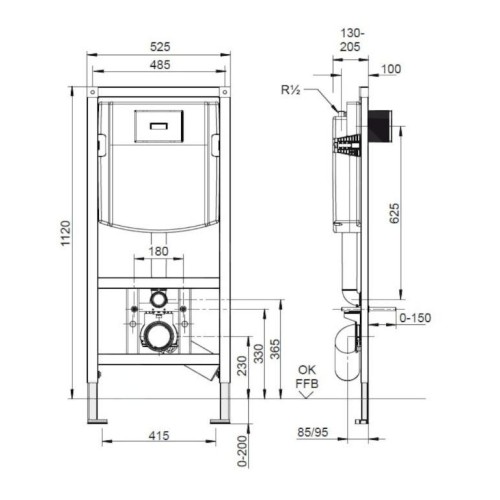

Dimensions: 525 x 1120 x 205 mm

Self-supporting frame construction made of powder-coated steel

Fully assembled

With wall bracket

Including feet and mounting hardware

With drainpipe protection

2 fixing screws for the WC, 180 mm spacing, with sleeve and nuts

Without actuator plates

Adjustable feet from rough floor to finished floor: 0–200 mm

Front edge depth adjustment: 135–205 mm (when using wall brackets for mounting)

4 fixing points

Concealed cistern with insulation against dew formation

With 2 flush volumes: 3/6 l, adjustable to 3/4.5 l, maximum flush volume: 7.5 l

With inlet valve, noise level I

Flexible hose to the inlet valve

For screwing on without tools

Connection set for a Two-piece angle valve R1/2

Drain bend mounting clamp, adjustable in 4 positions

Protective mounting box for the inspection opening, which can be shortened

With depth-adjustable 90° drain bend DN90 (Ø90) / with transition DN90 (Ø90) / DN100 (Ø110)

With protection, connection set for toilet DN90 (Ø90) / 180 mm
